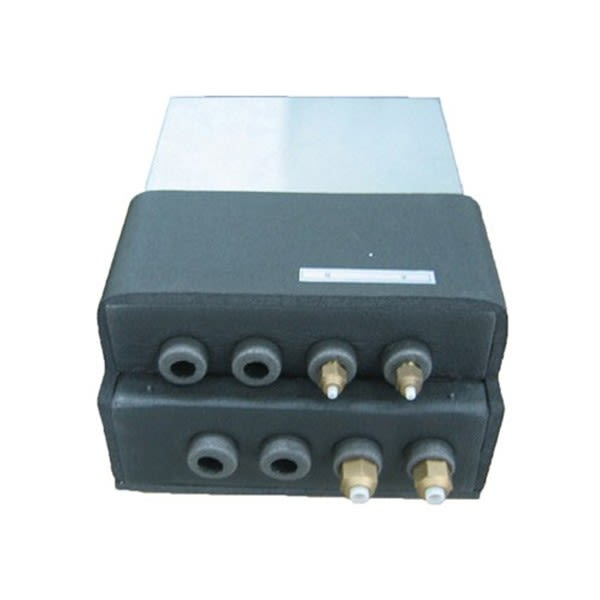

2 Port Indoor Unit Branch Distributor for 1 to 2 Indoor Units,This LG branch distributor is internally insulated to provide a uniquely effective-and drainage proof means for refrigerant distribution to various indoor units without brazing.
TECH SPECS
General Information | |
|---|
| Type | Branch Box |
| Product Line | Multi F |
| Ports Quantity | 2 |
| UPC | 048231368155 |
|
Performance | |
|---|
| Maximum Port Capacity | 24000 BTU |
| Maximum Total Port Capacity | 48000 BTU |
Electrical Data | |
|---|
| Power Consumption | 16 Watts |
| Phase: | 1 |
| Frequency: | 60 Hz |
Dimensions | |
|---|
| Liquid Connection Size | 3/8 Inch |
| Suction Connection Size | 3/4 Inch |
| Line Set A Liquid Connection | 1/4 Inch |
| Line Set A Gas Connection | 3/8 Inch |
| Line Set B Liquid Connection | 1/4 Inch |
| Line Set B Gas Connection | 3/8 Inch |
| Product Height | 5 11/12 Inches |
| Product Width | 9 41/48 Inches |
| Product Depth | 11 13/16 Inches |
| Product Weight | 13 Pounds |
| Shipping Weight | 15 Pounds |
|
Certifications | |
|---|
| Country of Origin | Korea |
