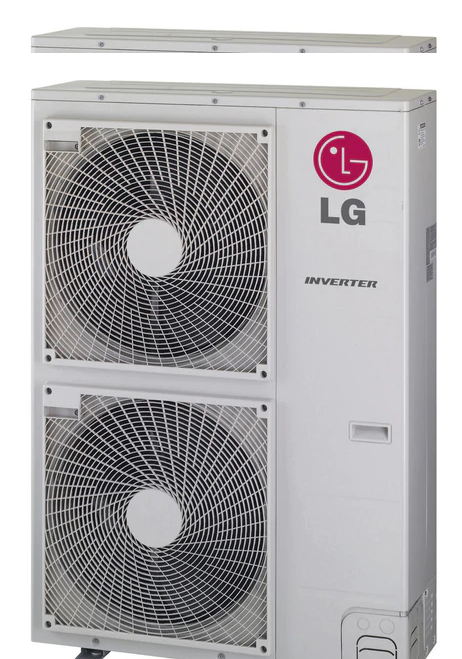

This is an 36,000 BTU outdoor unit. The indoor unit must be purchased separately. The Multi F series of heat pumps are compact, outdoor units compatible with both ducted and duct-free indoor units. With the ability to support multiple zones the Multi F is perfectly suited for residential and light commercial applications. The Multi F lineup also features units with LGRED° heat technology which offers reliable heating in some of the most extreme winter temperatures.
TECH SPECS
General Information | |
|---|
| Type | Outdoor Condenser |
| Product Line | LGRED Heat |
| Operating Mode | Heating and Cooling |
| Maximum Number of Zones | 5 |
| Multi-Zone Compatible | Yes |
| Refrigerant Type | R-410A |
| Installation Location | Outdoor |
| Branch Box Required | Yes |
| Base Pan Heater Included | Yes |
| Color | Warm Gray |
| UPC | 482313819010 |
Performance | |
|---|
| Cooling BTU | 36000 |
| Cooling Power Input | 2400 Watts |
| Heating Power Input | 2930 Watts |
| Maximum Sound Level | 57 dB |
| Low Ambient Heating | Yes |
| Minimum Outdoor Temperature for Heating | -13 F |
| Minimum Outdoor Temperature for Cooling | 14 F |
Electrical Data | |
|---|
| Voltage: | 208/230 Volts |
| Phase: | 1 |
| Frequency: | 60 Hz |
| Minimum Circuit Ampacity | 30.2 Amps |
| Recommended Breaker Size: | 45 Amps |
Dimensions | |
|---|
| Maximum Line Length: | 246.1 Feet |
| Liquid Connection Size | 3/8 Inch |
| Gas Connection Size | 3/4 Inch |
| Product Height | 54 17/48 Inches |
| Product Width | 37 5/12 Inches |
| Product Depth | 13 Inches |
| Product Weight | 223 Pounds |
| Shipping Weight | 250 Pounds |
Certifications | |
|---|
| ETL Listed | Yes |
| UL Listed | Yes |
| ISO Certified | Yes |
Warranty Information | |
|---|
| Parts Warranty | 5 Years |
| Compressor Warranty | 7 Years |
WARRANTY INFORMATION
The Standard Warranty Period and the Compressor Warranty Period are extended to a total of ten (10) years (the “Extended Warranty Period”) for qualified Systems that have been (a) installed by a party that has completed the Training Requirements, (b) installation is pursuant to LG’s published instructions, and (c) product is registered within 60 days of startup at https://lg-dfs-warranty.com/
