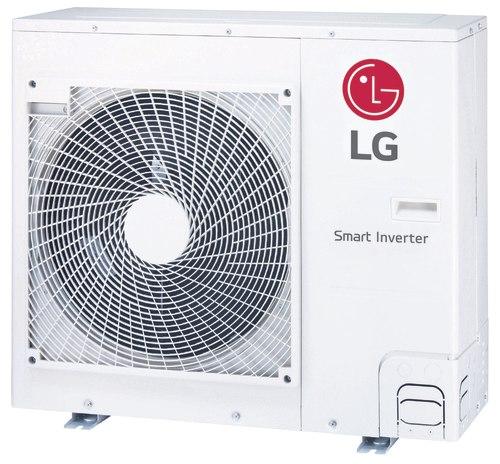

This is an 18,000 BTU outdoor unit. The indoor unit must be purchased separately. The Multi F series of heat pumps are compact, outdoor units compatible with both ducted and duct-free indoor units. With the ability to support multiple zones the Multi F is perfectly suited for residential and light commercial applications. The Multi F lineup also features units with LGRED° heat technology which offers reliable heating in some of the most extreme winter temperatures.
TECH SPECS
General Information | |
|---|
| Type | Outdoor Condenser |
| Product Line | LGRED Heat |
| Operating Mode | Heating and Cooling |
| Maximum Number of Zones | 2 |
| Multi-Zone Compatible | Yes |
| Refrigerant Type | R-410A |
| Installation Location | Outdoor |
| Branch Box Required | No |
| Base Pan Heater Included | Yes |
| Color | Warm Gray |
| UPC | 482313818716 |
Performance | |
|---|
| Cooling BTU | 18000 |
| Cooling Power Input | 1330 Watts |
| Heating Power Input | 2220 Watts |
| Maximum Sound Level | 54 dB |
| Low Ambient Heating | Yes |
| Minimum Outdoor Temperature for Heating | -13 F |
| Minimum Outdoor Temperature for Cooling | 14 F |
Electrical Data | |
|---|
| Voltage: | 208/230 Volts |
| Phase: | 1 |
| Frequency: | 60 Hz |
| Minimum Circuit Ampacity | 18.6 Amps |
| Recommended Breaker Size: | 25 Amps |
Dimensions | |
|---|
| Maximum Line Length | 164 Feet |
| Line Set A Liquid Connection | 1/4 Inch |
| Line Set A Gas Connection | 3/8 Inch |
| Line Set B Liquid Connection | 1/4 Inch |
| Line Set B Gas Connection | 3/8 Inch |
| Product Height | 32 41/48 Inches |
| Product Width | 37 5/12 Inches |
| Product Depth | 13 Inches |
| Product Weight | 147.7 Pounds |
| Shipping Weight | 164 Pounds |
Certifications | |
|---|
| ETL Listed | Yes |
| UL Listed | Yes |
| ISO Certified | Yes |
Warranty Information | |
|---|
| Parts Warranty | 5 Years |
| Compressor Warranty | 7 Years |
WARRANTY INFORMATION
LG Art Cool inverter models use a variable speed compressor which is quieter to operate and uses less energy than conventional air conditioners. When the selected temperature is reached, the inverter compressor operates at low speed to maintain that comfort level.
