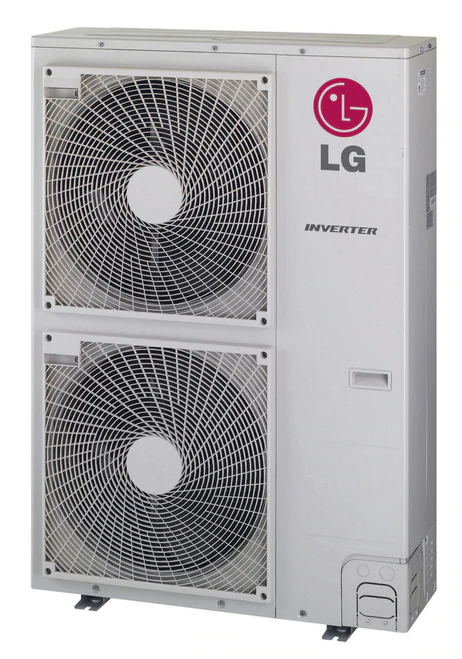

This LG Ductless Mini Split Heat Pump Air Conditioner LMU540HV Multi Zone Condenser is part of LG's Ductless Mini Split Air Conditioning lineup that offers convenient solutions that are cost effective, quiet, and attractive. This LG Ductless Mini Split Heat Pump Air Conditioner LMU540HV Multi Zone Condenser is an exterior unit that is slim, lightweight, and aesthetically pleasing. LG Ductless Mini Splits are high performance air conditioners with high electrical savings.
TECH SPECS
General Information | |
|---|
| Type | Outdoor Condenser |
| Product Line | Multi F |
| Operating Mode | Heating and Cooling |
| Product Sub-line | MAX |
| Maximum Number of Zones | 8 |
| Multi-Zone Compatible | Yes |
| Refrigerant Type | R-410A |
| Installation Location | Outdoor |
| Branch Box Required | Yes |
| UPC | 048231367806 |
Performance | |
|---|
| Cooling BTU | 54000 |
| Maximum Sound Level | 56 dB |
| Low Ambient Heating | Yes |
| Minimum Outdoor Temperature for Heating | -4 F |
| Minimum Outdoor Temperature for Cooling | 14 F |
|
Electrical Data | |
|---|
| Voltage: | 208/230 Volts |
| Phase: | 1 |
| Frequency: | 60 Hz |
| Recommended Breaker Size: | 40 Amps |
Dimensions | |
|---|
| Maximum Line Length: | 475.7 Feet |
| Line Set A Liquid Connection: | 3/4 Inch |
| Liquid Connection Size | 3/8 Inch |
| Product Height | 54 17/48 Inches |
| Product Width | 37 29/48 Inches |
| Product Depth | 13 Inches |
| Product Weight | 214 Pounds |
| Shipping Weight | 236 Pound |
Certifications | |
|---|
| ETL Listed | Yes |
| UL Listed | Yes |
| ISO Certified | Yes |
Warranty Information | |
|---|
| Parts Warranty | 5 Years |
| Compressor Warranty | 7 Years |
WARRANTY INFORMATION
The Standard Warranty Period and the Compressor Warranty Period are extended to a total of ten (10) years (the “Extended Warranty Period”) for qualified Systems that have been (a) installed by a party that has completed the Training Requirements, (b) installation is pursuant to LG’s published instructions, and (c) product is registered within 60 days of startup at https://lg-dfs-warranty.com/
