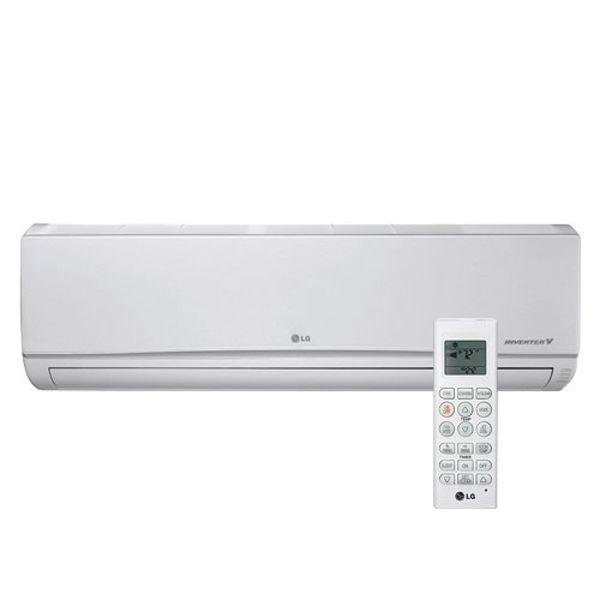

12,000 BTU, 17 SEER Mega Single Zone Inverter Air Conditioner/Heat Pump Package.Includes Indoor Model LSN120HEV1 and Outdoor Model LSU120HEV1. These single-zone systems feature energy-saving Inverter (variable-speed compressor) technology and are controlled through a standard wireless remote.
TECH SPECS
General Information | |
|---|
| Type | Wall Mounted |
| Product Line | Mega |
| Operating Mode | Heating and Cooling |
| Indoor Unit Size(s) | 12 |
| Multi-Zone Compatible | No |
| Refrigerant Type | R-410A |
| Remote Control | Wireless |
| Installation Location | Indoor |
| UPC | 048231377058 |
Performance | |
|---|
| Cooling BTU | 12000 |
| Cooling Capacity | 12000 BTU |
| Minimum Air Flow | 212 CFM |
| Maximum Air Flow | 424 CFM |
| Maximum Sound Level | 39 dB |
| Minimum Sound Level | 19 dB |
Electrical Data | |
|---|
| Phase: | 1 |
| Frequency: | 60 Hz |
Dimensions | |
|---|
| Liquid Connection Size | 1/4 Inch |
| Gas Connection Size | 3/8 Inch |
| Product Height | 11 1/4 Inches |
| Product Width | 34 13/16 Inches |
| Product Depth | 8 1/4 Inches |
| Product Weight | 23 Pounds |
| Shipping Weight | 28 Pounds |
Certifications | |
|---|
| ETL Listed | Yes |
| UL Listed | Yes |
| ISO Certified | Yes |
Warranty Information | |
|---|
| Parts Warranty | 5 Years |
WARRANTY INFORMATION
The Standard Warranty Period and the Compressor Warranty Period are extended to a total of ten (10) years (the “Extended Warranty Period”) for qualified Systems that have been (a) installed by a party that has completed the Training Requirements, (b) installation is pursuant to LG’s published instructions, and (c) product is registered within 60 days of startup at https://lg-dfs-warranty.com/
