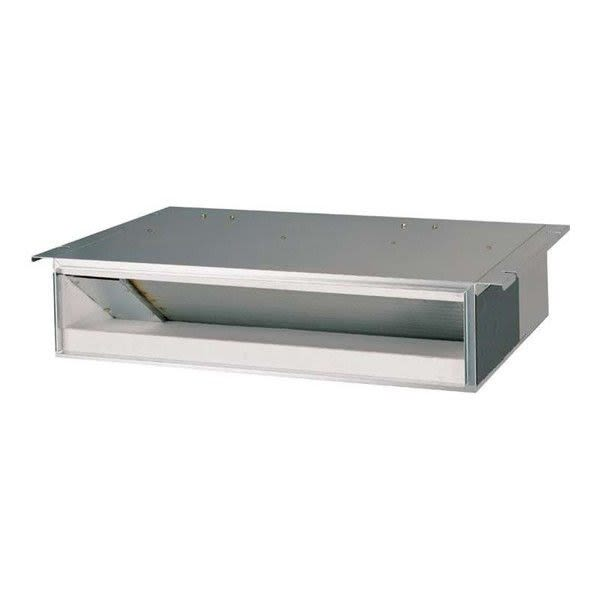

LG's Concealed Duct systems, such as this LD127HV4, have several advantages over wall mounted systems. The LDN127HV4 is a mini split indoor unit designed for installation is short-run ducting with low static pressures. If you're looking for a low-profile alternative to wall mounted ductless heat pump systems, LG's Low-Static Concealed Duct units are a great choice.
TECH SPECS
General Information | |
|---|---|
| Type | Concealed Duct |
| Product Line | Multi F |
| Operating Mode | Heating and Cooling |
| Product Sub-line | Low-Static Ducted |
| Indoor Unit Size(s) | 12 |
| Multi-Zone Compatible | Yes |
| Refrigerant Type | R-410A |
| Remote Control | Wireless |
| Installation Location | Indoor |
| UPC | 048231380577 |
Performance | |
| Cooling BTU | 12000 |
| Cooling Capacity | 12000 BTU |
| Minimum Air Flow | 247 CFM |
| Maximum Air Flow | 353 CFM |
| Maximum Sound Level | 31 dB |
| Minimum Sound Level | 27 dB |
Electrical Data | |
| Phase: | 1 |
| Frequency: | 60 Hz |
Dimensions | |
| Liquid Connection Size | 1/4 Inch |
| Gas Connection Size | 3/8 Inch |
| Product Height | 7 23/48 Inches |
| Product Width | 38 17/48 Inches |
| Product Depth | 27 9/16 Inches |
| Product Weight | 51 Pounds |
| Shipping Weight | 60 Pounds |
Certifications | |
| ETL Listed | Yes |
| UL Listed | Yes |
| ISO Certified | Yes |
Warranty Information | |
| Parts Warranty | 5 Years |
WARRANTY INFORMATION
The Standard Warranty Period and the Compressor Warranty Period are extended to a total of ten (10) years (the “Extended Warranty Period”) for qualified Systems that have been (a) installed by a party that has completed the Training Requirements, (b) installation is pursuant to LG’s published instructions, and (c) product is registered within 60 days of startup at https://lg-dfs-warranty.com/

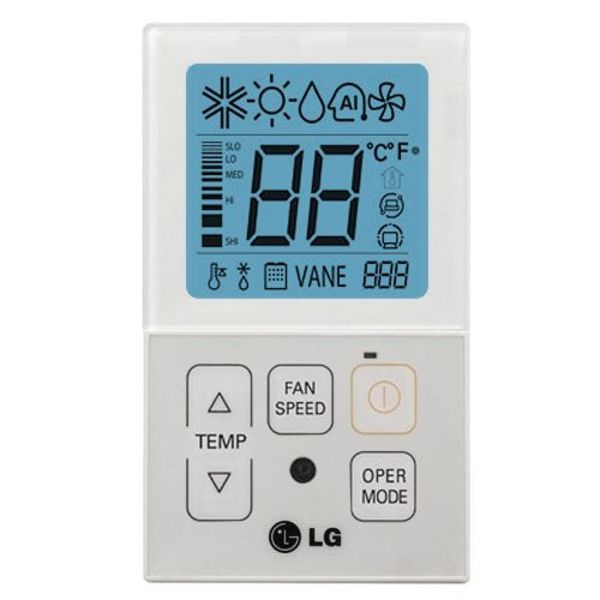

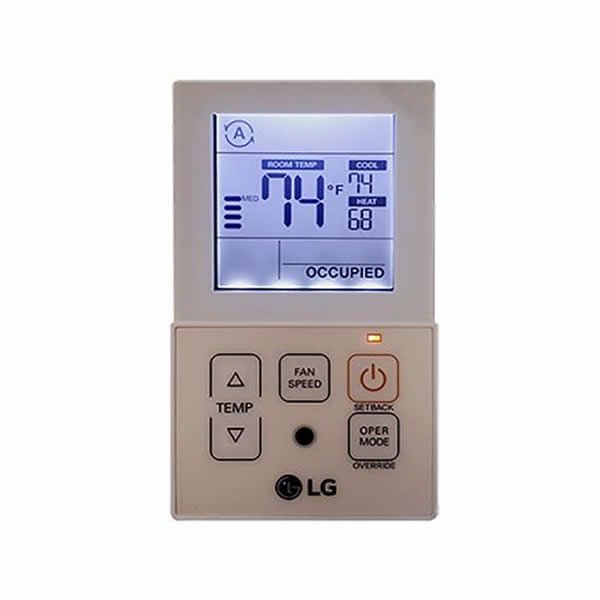

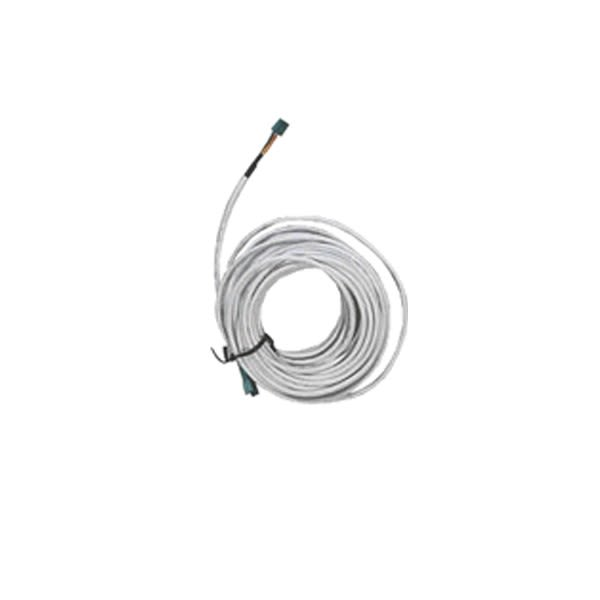

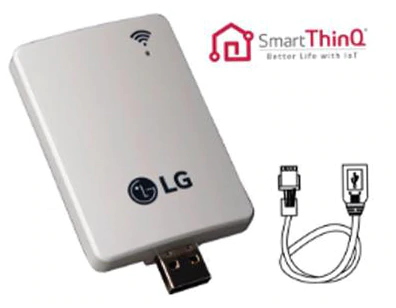

Installation Accessories
SKU:
Usually Leaves Warehouse in 2 - 4 Business Days
SKU: PWFMDD200
Usually Leaves Warehouse in 2 - 4 Business Days
SKU: PZCWRC1
Usually Leaves Warehouse in 2 - 4 Business Days
