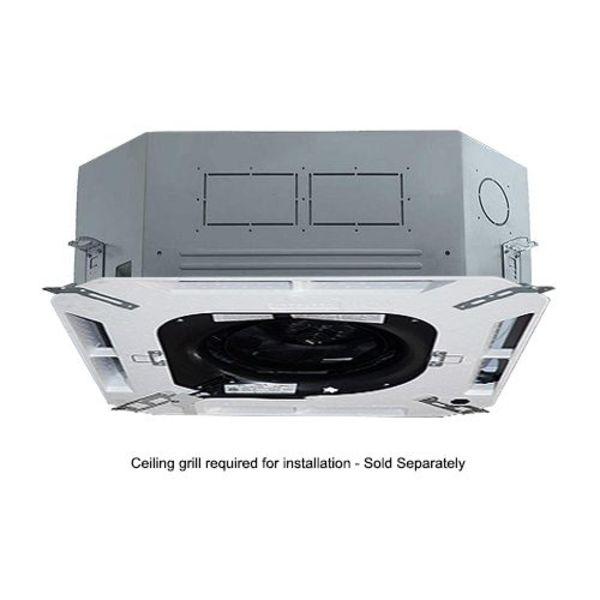

24,000 BTU Ductless Single Zone Air Conditioner/Inverter Ceiling Cassette Heat Pump Package. Includes LCN247HV Indoor Model & LUU247HV Outdoor Model. This Package also includes the PT-UMC Grille for the Indoor Unit. LG's Four-Way Ceiling Cassette systems, such as this LC247HV, have several advantages over wall mounted systems. By recessing the LCN247HV indoor unit, a 1.5" thick grille is the only part of the equipment that stays visible. Unobtrusive comfort isn't the only advantage of a ceiling cassette; with four air flow directions, the LC247HV provides excellent coverage for large zones. If you're looking for a low-profile alternative to wall mounted ductless heat pump systems, LG's Four-Way Ceiling Cassettes are a great choice.
TECH SPECS
General Information | |
|---|
| Type | Ceiling Cassette |
| Product Line | Four-Way Ceiling Cassette |
| Operating Mode | Heating and Cooling |
| Indoor Unit Size(s) | 24 |
| Multi-Zone Compatible | No |
| Refrigerant Type | R-410A |
| Grille | Not Included |
Required Grille Model | PT-UMC1 |
| Installation Location | Outdoor |
| UPC | 048231379779 |
Performance | |
|---|
| Cooling BTU | 24000 |
| Cooling Capacity | 24000 BTU |
| Minimum Air Flow | 459 CFM |
| Maximum Air Flow | 600 CFM |
| Low Ambient Heating | Yes |
| Maximum Sound Level | 38 dB |
| Minimum Sound Level | 34 dB |
Electrical Data | |
|---|
| Phase: | 1 |
| Frequency: | 60 Hz |
Dimensions | |
|---|
| Liquid Connection Size | 3/8 Inch |
| Gas Connection Size | 5/8 Inch |
| Product Height | 8 1/24 Inches |
| Product Width | 33 1/16 Inches |
| Product Depth | 33 1/16 Inches |
| Product Weight | 46 Pounds |
| Shipping Weight | 55 Pounds |
Certifications | |
|---|
| ETL Listed | Yes |
| UL Listed | Yes |
| AHRI Certified | Yes |
| ISO Certified | Yes |
Warranty Information | |
|---|
| Parts Warrant | 5 Years |
WARRANTY INFORMATION
The Standard Warranty Period and the Compressor Warranty Period are extended to a total of ten (10) years (the “Extended Warranty Period”) for qualified Systems that have been (a) installed by a party that has completed the Training Requirements, (b) installation is pursuant to LG’s published instructions, and (c) product is registered within 60 days of startup at https://lg-dfs-warranty.com/
